ggHoriPlot: horizon plots in ggplot2

R-CMD-check CRAN downloads codecov

This package allows building horizon plots in ggplot2. You can learn more about the package in vignette("ggHoriPlot").

Installation

You can install ggHoriPlot from CRAN via:

install.packages("ggHoriPlot")

You can also install the development version of the package from GitHub with the following command:

#install.packages("devtools")
devtools::install_github("rivasiker/ggHoriPlot")

Basic example

Load the libraries:

library(tidyverse)
library(ggHoriPlot)
library(ggthemes)

Load the dataset and calculate the cutpoints and origin:

utils::data(climate_CPH)

cutpoints <- climate_CPH  %>%
  mutate(
    outlier = between(
      AvgTemperature,
      quantile(AvgTemperature, 0.25, na.rm=T)-
        1.5*IQR(AvgTemperature, na.rm=T),
      quantile(AvgTemperature, 0.75, na.rm=T)+
        1.5*IQR(AvgTemperature, na.rm=T))) %>%
  filter(outlier)

ori <- sum(range(cutpoints$AvgTemperature))/2
sca <- seq(range(cutpoints$AvgTemperature)[1],
           range(cutpoints$AvgTemperature)[2],
           length.out = 7)[-4]

round(ori, 2) # The origin
#> [1] 6.58

round(sca, 2) # The horizon scale cutpoints
#> [1] -12.11  -5.88   0.35  12.81  19.05  25.28

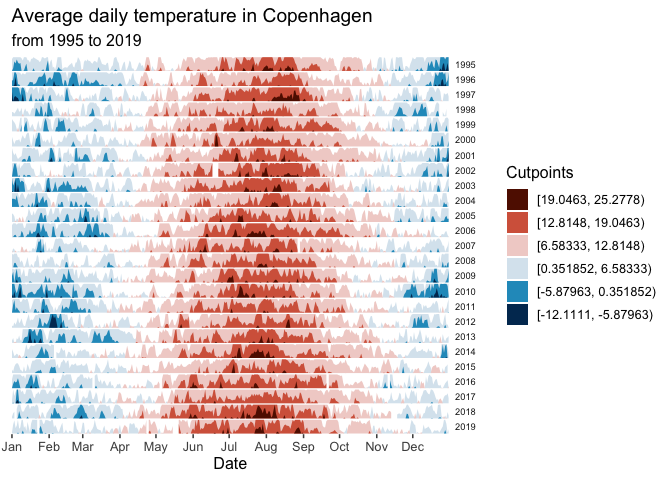

Build the horizon plots in ggplot2 using geom_horizon():

climate_CPH %>% ggplot() +
  geom_horizon(aes(date_mine,
                   AvgTemperature,
                   fill = ..Cutpoints..),
               origin = ori, horizonscale = sca) +
  scale_fill_hcl(palette = 'RdBu', reverse = T) +
  facet_grid(Year~.) +
  theme_few() +
  theme(
    panel.spacing.y=unit(0, "lines"),
    strip.text.y = element_text(size = 7, angle = 0, hjust = 0),
    axis.text.y = element_blank(),
    axis.title.y = element_blank(),
    axis.ticks.y = element_blank(),
    panel.border = element_blank()
    ) +
  scale_x_date(expand=c(0,0),
               date_breaks = "1 month",
               date_labels = "%b") +
  xlab('Date') +
  ggtitle('Average daily temperature in Copenhagen',
          'from 1995 to 2019')

Learn more

You can check out the full functionality of ggHoriPlot in the following guides:
