grobblR

CRAN status

The grobblR package allows R users the ability to intuitively create flexible, reproducible PDF reports comprised of aesthetically pleasing tables, images, plots and/or text. This is done by implementing grobs from the grid and gridExtra packages.

Within grobblR, the objects able to be converted to a grob are:

Data frames / matrices
- Or a vector of values
ggplot2 objects
A file path or a URL to a .png image
Character strings
Empty space (represented with NA)

Example reports created by grobblR.

Installation

You can install the latest version on CRAN with

install.packages("grobblR")

Grob Layout

We decided on a bootstrap-like method to arrange grobs, which would incorporate nested grob-rows (a row combining one or several grobs) and grob-columns (a column combining one or several grobs) within an overall layout of grobs (which we will call a grob-layout).
The main grob-layout function evaluates the overall dimensions of the page you desire, and then distributes heights and widths to the grobs that will make up the page, based on proportions and the amount of grob-rows (grob_row()) and grob-columns (grob_col()) within the overall grob-layout (grob_layout()).

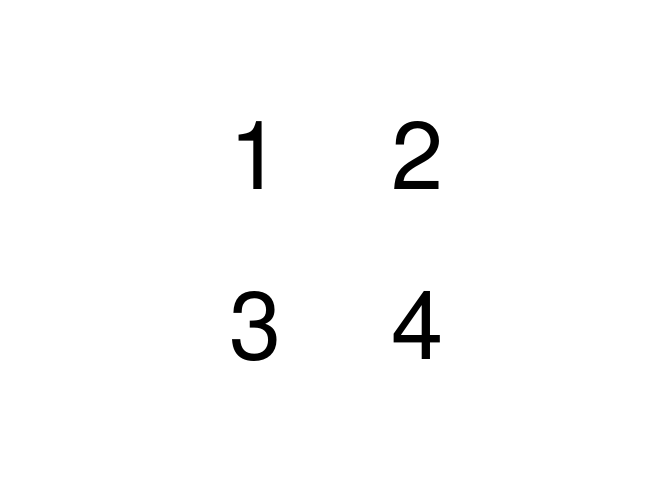

For example, if we wanted to do a simple 2 x 2 grid system on a 100mm x 100mm (millimeters is the default unit in grobblR) page, we would simply write:

library(grobblR)

grob_layout(
  grob_row(grob_col(1), grob_col(2)),
  grob_row(grob_col(3), grob_col(4)),
  height = 100,
  width = 100
  ) %>%
  view_grob()

The grob_row()’s tell the grob_layout() that the user wants two rows on the outermost layer, and since there are two grob_col()’s within each of the grob_row()’s, the result is a 2 x 2 grid.

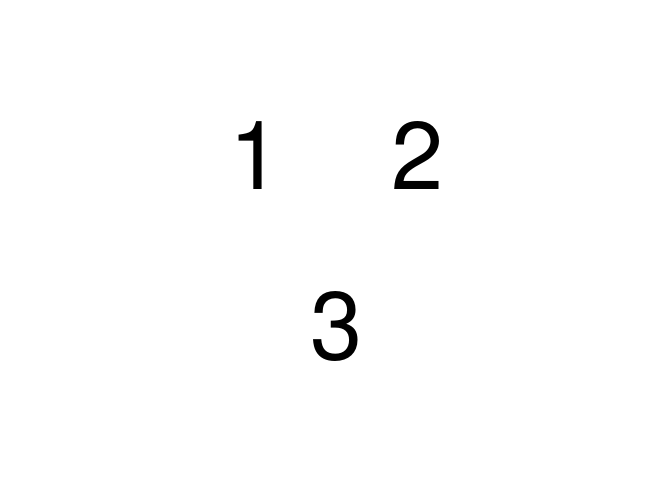

But the result doesn’t have to be a nice 2 x 2 grid - we could have a layout where the first row has two columns and the second has one:

grob_layout(
  grob_row(grob_col(1), grob_col(2)),
  grob_row(grob_col(3)),
  height = 100,
  width = 100
  ) %>%
  view_grob()

Run vignette("grob_layout") for more information on grob_layout().

Nested Rows and Columns

One of the ways that makes grobblR truly flexible is the ability to create “nested” rows and columns - where we can insert grob-rows into grob-columns, and vice-versa.
This is made possible by incorporating the active classes within the R6 package.

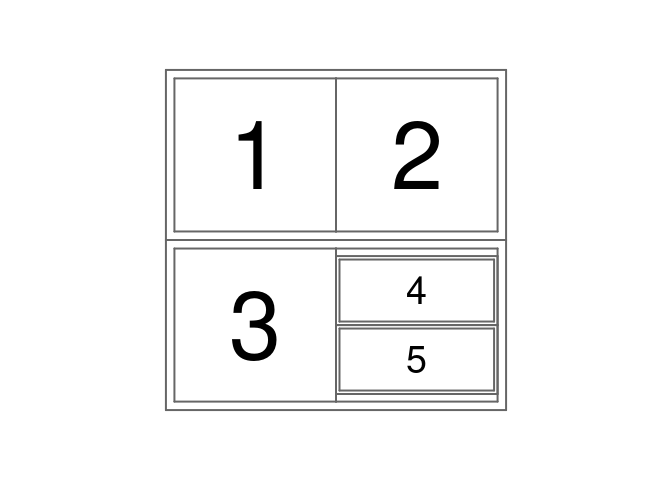

The below grob-layout has a second grob-column in the second grob-row which contains two grob-rows within it:

grob_layout(
  grob_row(
    border = TRUE,
    grob_col(border = TRUE, 1),
    grob_col(border = TRUE, 2)
    ),
  grob_row(
    border = TRUE,
    grob_col(border = TRUE, 3),
    grob_col(
      border = TRUE,
      grob_row(border = TRUE, grob_col(border = TRUE, 4)),
      grob_row(border = TRUE, grob_col(border = TRUE, 5))
      )
    ),
  height = 100,
  width = 100
  ) %>%
  view_grob()

Size Control

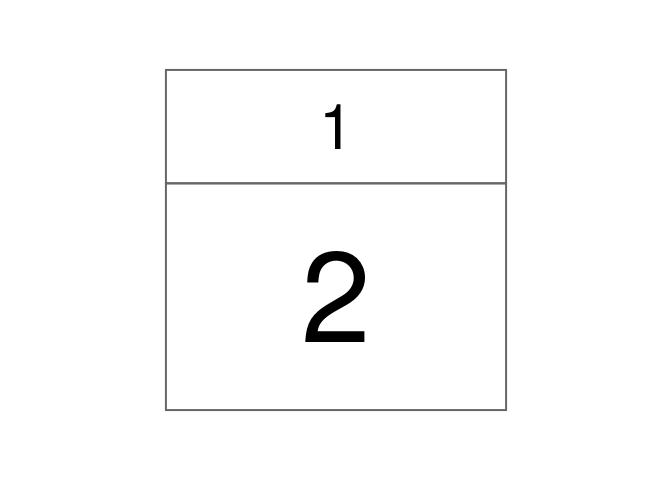

One way to control heights and widths of the grobs is by tweaking the p (standing for proportion) parameter within both grob_row() and grob_col().
The default for p is 1, but sizes change if p differs from that.

grob_layout(
  grob_row(p = 1, border = TRUE, grob_col('1')),
  grob_row(p = 2, border = TRUE, grob_col('2')),
  height = 100,
  width = 100
  ) %>%
  view_grob()

The grob-row with p = 2 is given twice the height of the grob-row with p = 1.

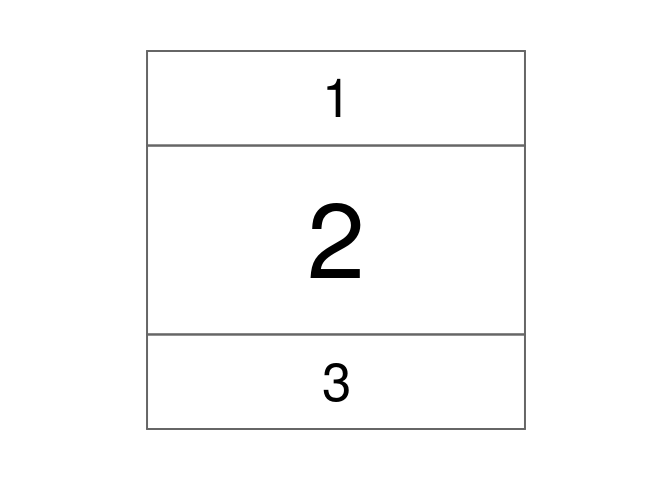

The user can also supply specific heights/widths in millimeters.

grob_layout(
  grob_row(height = 25, border = TRUE, grob_col('1')),
  grob_row(height = 50, border = TRUE, grob_col('2')),
  grob_row(height = 25, border = TRUE, grob_col('3')),
  height = 100,
  width = 100,
  padding = 0
  ) %>%
  view_grob()

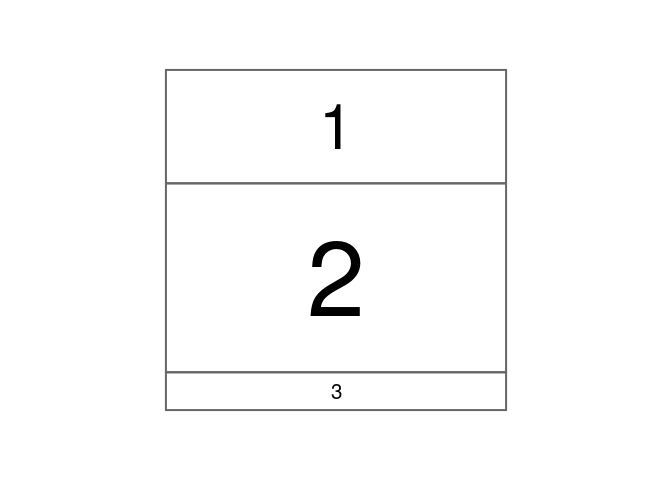

Or the user can use a combination of specific heights and proportions to size the grobs:

grob_layout(
  grob_row(p = 3, border = TRUE, grob_col('1')),
  grob_row(height = 50, border = TRUE, grob_col('2')),
  grob_row(p = 1, border = TRUE, grob_col('3')),
  height = 100,
  width = 100
  ) %>%
  view_grob()

Matrix Grobs

Using the aes_list parameter and the ga_list() function within grob_col(), the aesthetics of individual grobs can be adjusted to how the user intends them to appear.
Run ?grobblR::ga_list for a full list and description for each of the possible aesthetic options.

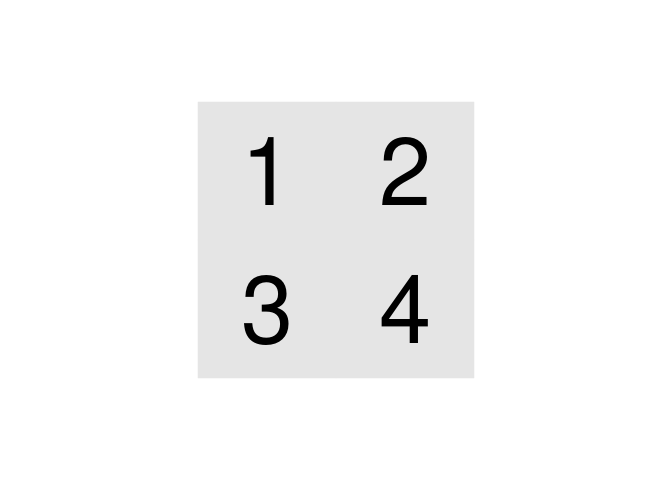

For uniform background color for each cell in a matrix, one option is inputting a single value for background_color as an element within aes_list:

mat = matrix(1:4, nrow = 2, byrow = TRUE)

grob_layout(
  grob_row(grob_col(mat, aes_list = ga_list(background_color = "gray90"))),
  height = 100,
  width = 100
  ) %>%
  view_grob()

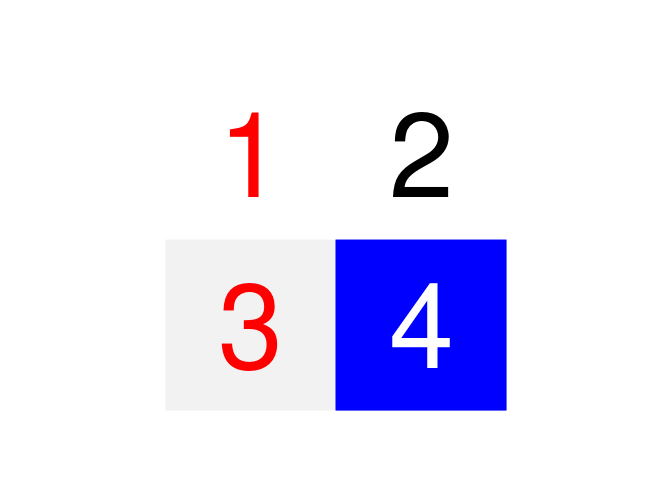

If the user wants different cells of the matrix to have different aesthetics, the user can utilize grob_matrix() and alter_at().
The user can alter specific cells / groups of cells, and different aesthetics with alter_at() once the grob_matrix() object is initialized.
Run vignette("grob_matrix") for more information on grob_matrix().

mat %>%
  grob_matrix() %>%
  alter_at(~ "red", columns = 1, aesthetic = "text_color") %>%
  alter_at(~ "blue", columns = 2, rows = 2, aesthetic = "background_color") %>%
  alter_at(~ "white", columns = 2, rows = 2, aesthetic = "text_color") %>%
  view_grob()

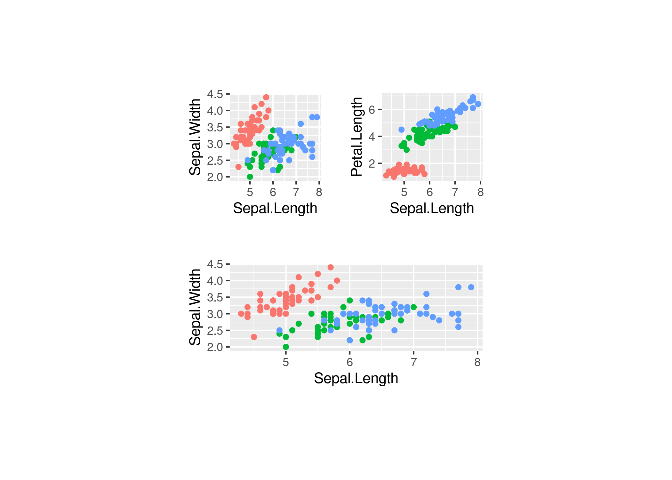

ggplot Grobs

The ggplot2 plot is stretched or squished depending on what the dimensions of the allotted space are:

data(iris)
library(ggplot2)

gg1 = ggplot(
  data = iris,
  mapping = aes(x = Sepal.Length, y = Sepal.Width, color = Species)
  ) +
  geom_point() +
  guides(color = FALSE)
#> Warning: `guides(<scale> = FALSE)` is deprecated. Please use `guides(<scale> =
#> "none")` instead.
gg2 = ggplot(
  data = iris,
  mapping = aes(x = Sepal.Length, y = Petal.Length, color = Species)
  ) +
  geom_point() +
  guides(color = FALSE)
#> Warning: `guides(<scale> = FALSE)` is deprecated. Please use `guides(<scale> =
#> "none")` instead.
grob_layout(
  grob_row(grob_col(gg1), grob_col(gg2)),
  grob_row(grob_col(gg1))
  ) %>%
  view_grob(height = 100, width = 100)

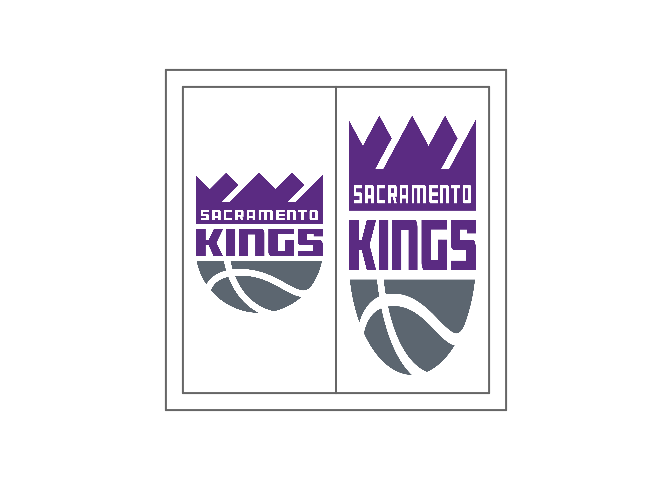

Image Grobs

Only images in .png format are allowed in grobblR. The user must provide either a valid file path or a valid URL to the image.
If the user does not want to maintain the aspect ratio of the image and allow it to be stretched within its allotted space, maintain_aspect_ratio = FALSE must be inserted within the aes_list list.

grob_layout(
  grob_row(
    border = TRUE,
    grob_col(
      border = TRUE,
      'vignettes/kings_logo.png'
      ),
    grob_col(
      border = TRUE,
      aes_list = ga_list(
        maintain_aspect_ratio = FALSE
        ),
      'https://raw.githubusercontent.com/calvinmfloyd/grobblR/master/vignettes/kings_logo.png'
      )
    ),
  height = 100,
  width = 100
  ) %>%
  view_grob()

Or the user can incorporate grob_image() and add_structure().

grob_layout(
  grob_row(
    border = TRUE,
    grob_col(
      border = TRUE,
      'vignettes/kings_logo.png'
      ),
    grob_col(
      border = TRUE,
      'https://raw.githubusercontent.com/calvinmfloyd/grobblR/master/vignettes/kings_logo.png' %>%
        grob_image() %>%
        add_structure("maintain_aspect_ratio", FALSE)
      )
    ),
  height = 100,
  width = 100
  ) %>%
  view_grob()

Text Grobs

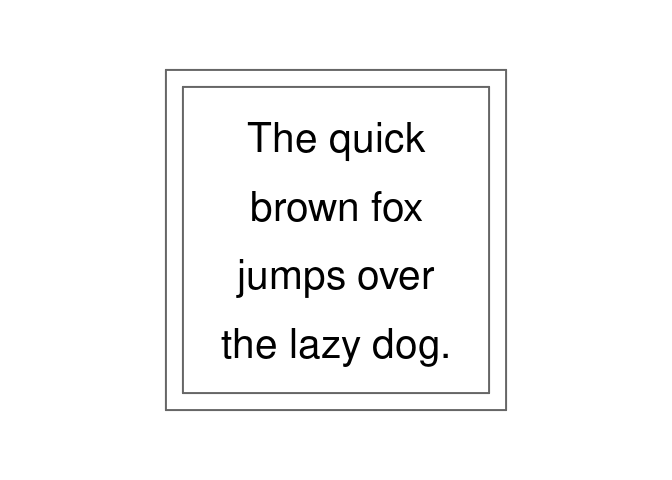

grobblR handles long character strings by making the text as big as possible, while still being able to fit the text inside its allotted space.
This results in automatically putting different words on different lines:

text = "The quick brown fox jumps over the lazy dog."

grob_layout(
  grob_row(
    border = TRUE,
    grob_col(
      border = TRUE,
      text
      )
    ),
  height = 100,
  width = 100
  ) %>%
  view_grob()

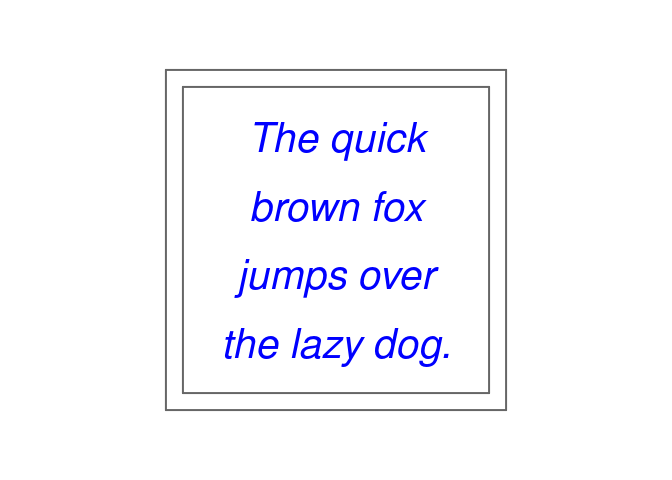

The aesthetics of the text can be tweaked with grob_text() and add_aesthetic().

grob_layout(
  grob_row(
    border = TRUE,
    grob_col(
      border = TRUE,
      text %>%
        grob_text() %>%
        add_aesthetic("text_color", "blue") %>%
        add_aesthetic("font_face", "italic")
      )
    ),
  height = 100,
  width = 100
  ) %>%
  view_grob()

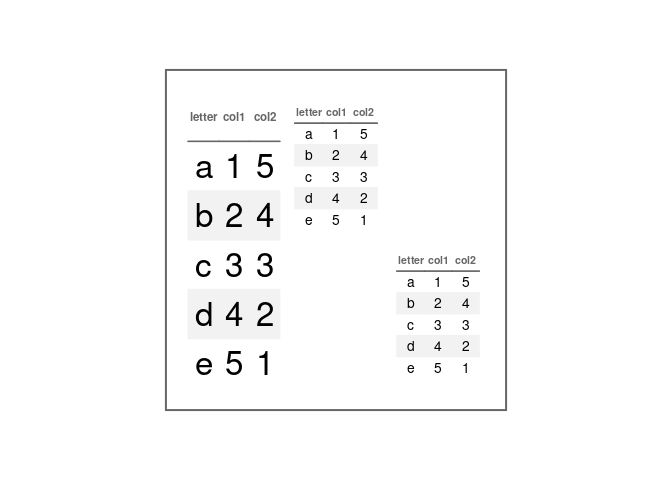

Empty Space Grobs

Empty space grobs in case the user needs to compact, or shift grobs around:

df = data.frame(letter = letters[1:5], col1 = 1:5, col2 = 5:1)

grob_layout(
  grob_row(
    border = TRUE,
    grob_col(df),
    grob_col(
      grob_row(grob_col(df)),
      grob_row(grob_col(p = 1/3, NA))
      ),
    grob_col(
      grob_row(grob_col(p = 1/3, NA)),
      grob_row(grob_col(df))
      )
    ),
  height = 100,
  width = 100
  ) %>%
  view_grob()

Grob Layout to PDF

The default values for the height and width parameters within grob_layout() are 280 millimeters and 216 millimeters, as these are the values needed to properly fit the grob-layout onto a piece of standard computer paper, portrait orientation.
Converting multiple grob-layout’s into a single PDF report using grob_to_pdf(), with a file title and a meta data title:

first_page_grob_layout = grob_layout(
  grob_row(
    border = TRUE,
    grob_col(df),
    grob_col(
      grob_row(grob_col(df)),
      grob_row(grob_col(p = 1/3, NA))
      ),
    grob_col(
      grob_row(grob_col(p = 1/3, NA)),
      grob_row(grob_col(df))
      )
    ),
  height = 100,
  width = 100
  )

second_page_grob_layout = grob_layout(
  grob_row(
    border = TRUE,
    grob_col(
      border = TRUE,
      text
      )
    ),
  height = 100,
  width = 100
  )

# grob_to_pdf(
#   first_page_grob_layout,
#   second_page_grob_layout,
#   file_name = file.path(tempdir(), "test.pdf"),
#   meta_data_title = "Test PDF"
#   )

# OR

grob_to_pdf(
  list(first_page_grob_layout, second_page_grob_layout),
  file_name = file.path(tempdir(), "test.pdf"),
  meta_data_title = "Test PDF"
  )
